Descriptive Memory

The Airport Terminal, Piura.

Descriptive Memory

International Airport, Piura.

Project Name:

The Airport Terminal, Piura

owners:

Regional Government of Piura

date:

November 2011

Location:

Department: Piura

Province: Piura

District: Piura

City: Piura

Address: Km 5 Carretera Paita..

registry data

Item No. 11111111.

Piura Registry Office, Registry Zone No. 1 Headquarters Piura.

Available land area.

Three million six hundred seven thousand two hundred nineteen (3607 219.29.71 m2)

Justification:

The construction of a new airport in the city of Piura responds to some perceived needs of various orders:

- Increase in domestic air traffic 17.65% between January and July 2011, compared to the same period in 2010 when two million passengers mobilized 971.969, registering three million passengers this year 496.609.

- The current airport of Piura is one that has a higher passenger traffic, this due to the increase in tourist and commercial.

- Increased demand for flights is presented in summer.

- The airport is the main gateway to the beaches in the area of Talara, Bodies, Mancora and Zorritos.

- Currently the offer of international flights is rising in the city of Piura.

objectives:

a) Build on the plot of land, currently unused, to build an airport terminal.

b) The project, which would be new set, to help improve and revitalize the urban image of the city.

c) With this project, helping to consolidate the urban area.

Program Project Areas:

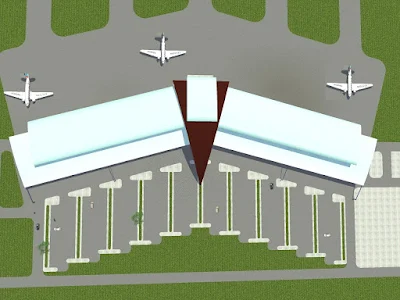

- An airport terminal will be built, with an average area of 15 137.5032 m2.

- The terminal will:

Salas or national service

Salas or international service

or Administration Building

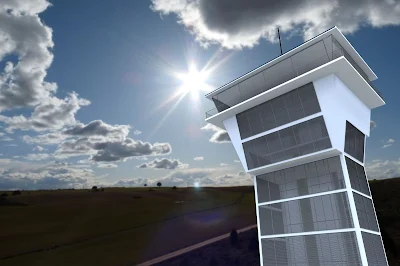

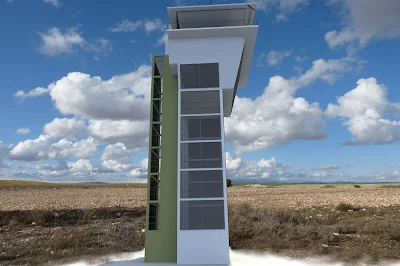

or Control Tower

- Area of the first floor: 9110.6942 m2

- Second Floor Area: 6026.8090 m2

- The total area will be built 15137.5032 m2

Project Description:

The proposed project is an airport terminal two levels.

The proposed design is a building of metal beams and columns, foundations are based on shoes. The mezzanine will be decking board. All exterior and interior walls of brick buildings will be finished and frotachados tarrajeados. The stairs are concrete structure with linoleum floors and balustrades and railings of steel in round tubes with a simple but nice design.

The interior floors are with porcelain, masonry walls are brick and finished frotachado without finishing. The doors to the terminal entrance doors are aluminum frame and translucent panels eco resin, and the interior doors are counter plates some plywood and aluminum eco resin panels and some others. All windows of the buildings are made of aluminum and sliding panels eco resin.

The latrines take sanitary ware and fittings national, of the highest possible quality, and the walls are plated with national porcelain.

Every room in the terminal take all your electrical fixtures and strength corresponding to the most appropriate possible performance.

In the whole design facilities cisterns, water towers and pumping equipment are included. The entire perimeter of the land will be fenced by a wall of iron railings and gates for internal parking.

The facade of the building will be trying to achieve a formal integration with the features of the urban context, and the color palette to be used for the facade and interior environments will be in pastels and light colors.

funding:

construction of the project with its own financial resources run.

Runtime:

It is estimated that the construction work could be done in a twelve-month calendar period.

Estimated Project Cost.

Based on the Values box Unitary Official Buildings for Costa, in force from 01 to 30 June 2010 (Ministerial Resolution No. 296-2009-Housing published on 30-10-2009 in the newspaper El Peruano. And Departmental resolution No. 145-2010-INEI of June 1, 2010).

structures:

- Walls and Columns

B. columns, beams and / or slabs of reinforced concrete and / or metálicas.S. / 249.99

- Ceilings:

A. Losa or lightened reinforced concrete with spans greater than 6m. More overload 300 kg / m2. S. / 121.39

D. Metallic cover, fiber cement over metal beams. S. / 81.41

finishes:

- Floors:

A. imported marble porcelain. S. / 206.46

- Doors and windows:

D. Aluminium windows and glass doors of select wood,

clear glass S. / 60.05

- Coatings

F. frotachado without finishing and / or plaster molding, washable paint S. / 45.36

- Bathrooms:

C. Bathrooms national or ceramic complete with majolica

National white colored S. / 40.70

- Electrical and sanitary installations:

E. Cold water, hot water, single phase S. / 43.86

The estimated cost of construction square meter results from five hundred twenty-five soles and three cents (S. / 849.22 Nuevos Soles).

The built condominium area is 15137.5032 m2.

15137.5032 m2 x S. / 849.22 = S / 12855 070.47

The estimated cost for the construction of the Airport Terminal is 12,855,000 seventy forty seven cents. (12 855 070.47 Nuevos Soles).

Roxana Paola Crisanto Silupú

DNI 45605716

 Download AutoCAD DWG file to project a

AutoCAD file a contains:

- Horizontal projections of the project

- Vertical projections of the project (sections (

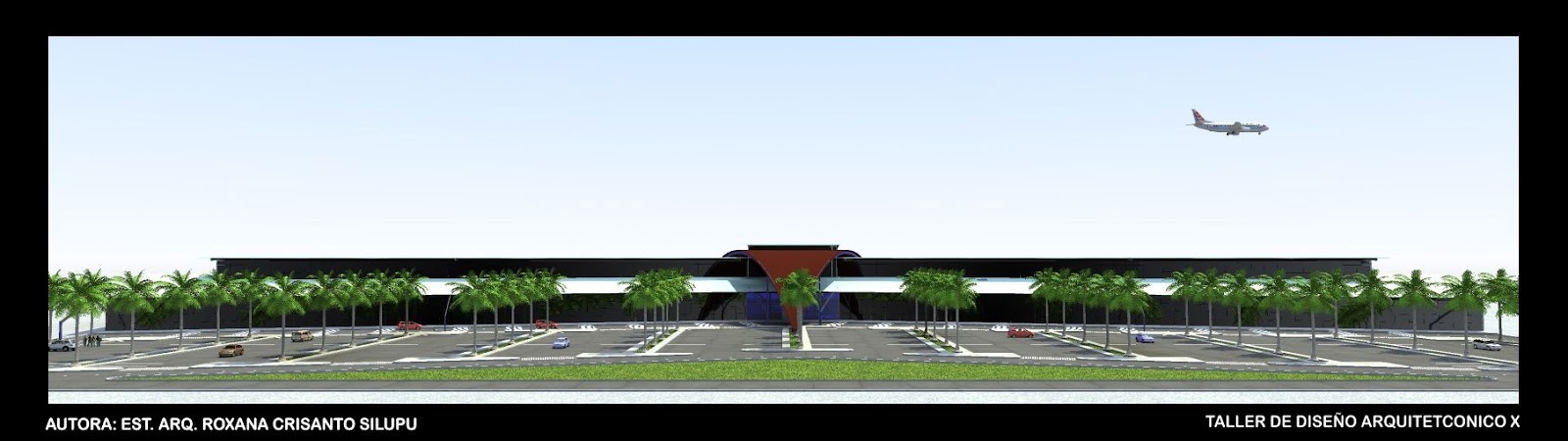

- North façade

- Eastern facade
- ARCHITECTURE
- STRUCTURES
- ELECTRICAL INSTALLATIONS
- sanitary
- OBRA
- COVER
- security

- town planning
